REDARC WATER TANK SENSOR KIT [A]

REDARC Water Tank Sensor Kit

Overview

The REDARC Water Tank Sensor Kit is designed for use with the RedVision Total Vehicle Management System (TVMS) to monitor clean water tank levels in RVs, motorhomes, caravans, and camper trailers. The kit provides the components required to connect a water tank to the TVMS for accurate level monitoring.

When used with the TVMS distribution box, the system reports five water level states, allowing users to conveniently monitor tank capacity from the compatible RedVision interface.

Key Features

• Designed for the REDARC RedVision Total Vehicle Management System (TVMS)

• Measures clean water tank levels

• Reports five water level states: Empty, ¼, ½, ¾, and Full

• Supports monitoring of up to six tanks through the TVMS

• Includes all components required for a single tank installation

• Suitable for RV, motorhome, caravan, and camper trailer applications

Specifications

• Product: REDARC Water Tank Sensor Kit

• Compatibility: REDARC RedVision Total Vehicle Management System (TVMS)

• Application: Clean Water Tank Level Monitoring

• Water Level States: Empty, ¼, ½, ¾, Full

• Maximum Supported Tanks: Up to 6 (One Sensor Kit Required Per Tank)

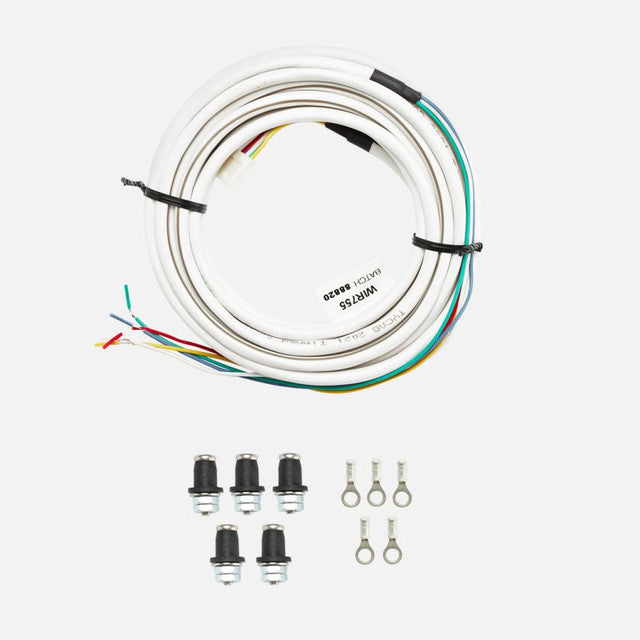

• Included:

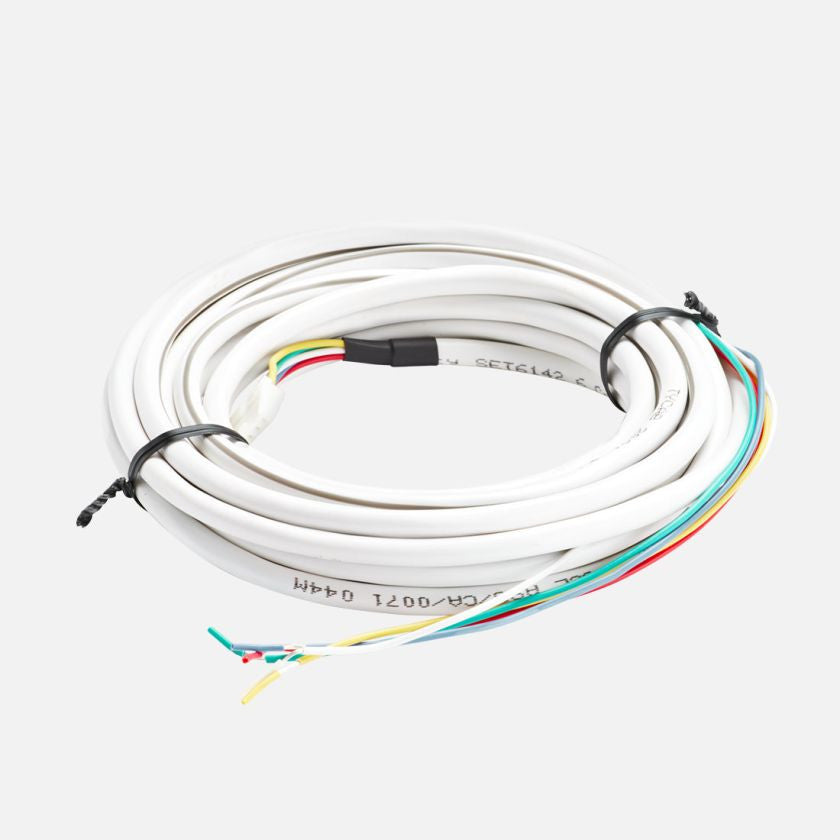

  • 16.5 ft Wiring Loom

  • 5 Crimp Lugs

  • 5 Screw-In Water Level Sensor Probes
