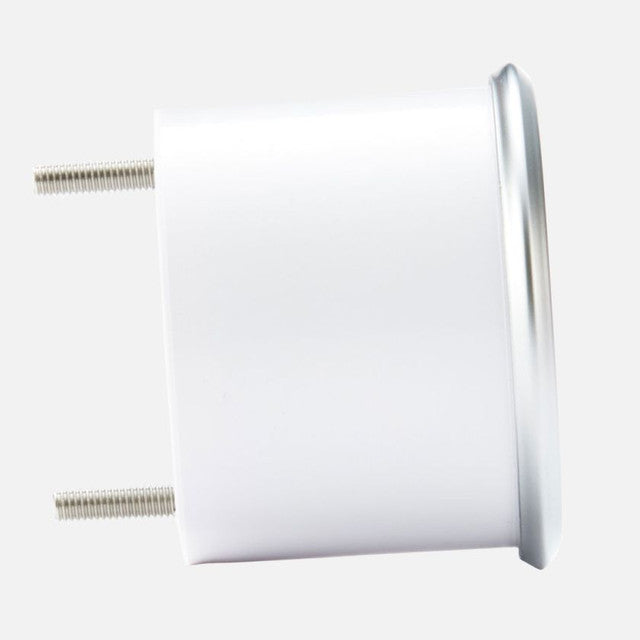

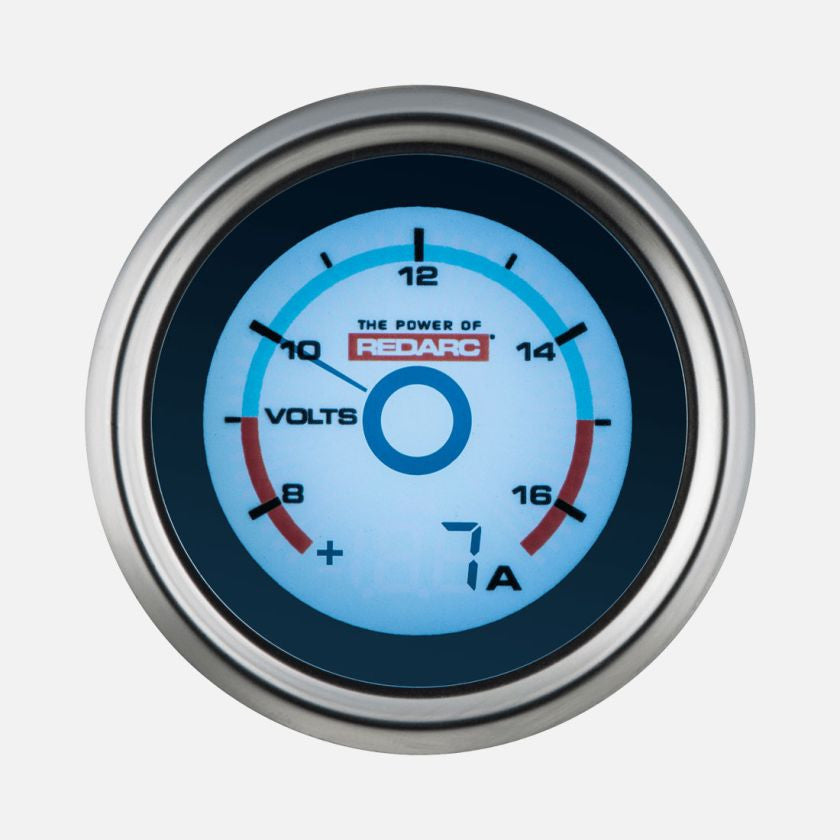

REDARC Single Voltage 52mm Gauge with optional current display [A]

REDARC Single Voltage Gauge 2-1/16 in

Overview

The REDARC Single Voltage Gauge 2-1/16 in is designed to monitor the charging performance of either a main or auxiliary battery in 4WDs, campers, caravans, motorhomes, and similar vehicles. Featuring an LED/LCD display, it provides real-time voltage information to help monitor battery condition and charging system performance.

The gauge includes configurable visual and audible alerts for low- and high-voltage conditions. It also supports current monitoring when paired with the optional REDARC Hall Effect Current Sensor, and offers customizable backlighting for improved visibility.

Key Features

• Monitors the voltage of either the main or auxiliary battery

• LED/LCD display for real-time voltage monitoring

• Configurable backlight with 13 color options

• Visual alerts with amber and red backlight indication

• Audible alert for low- and high-voltage conditions when the ignition is on

• Compatible with the optional REDARC Hall Effect Current Sensor for current monitoring

• Display illuminates with vehicle park lights

• Satin chrome bezel finish

• Compatible with the REDARC Enhanced Lighting Controller

Specifications

• Product: REDARC Single Voltage Gauge

• Model: G52-VA

• Gauge Size: 2-1/16 in

• Display: LED/LCD

• Battery Monitoring: Main or Auxiliary Battery

• Low Voltage Alert: Below 9V

• High Voltage Alert: Above 16V

• Current Monitoring: Optional 100A Display (Requires REDARC GS-AMPS Hall Effect Current Sensor)

• Backlight Colors: 13 Selectable Colors

• Compatible Accessories:

  • REDARC GS-AMPS Hall Effect Current Sensor

  • REDARC GA-ELC Enhanced Lighting Controller
