REDARC REDWORKS QuickFit75 TVMS Power Panel [A]

REDARC Integrated Power Management System

Overview

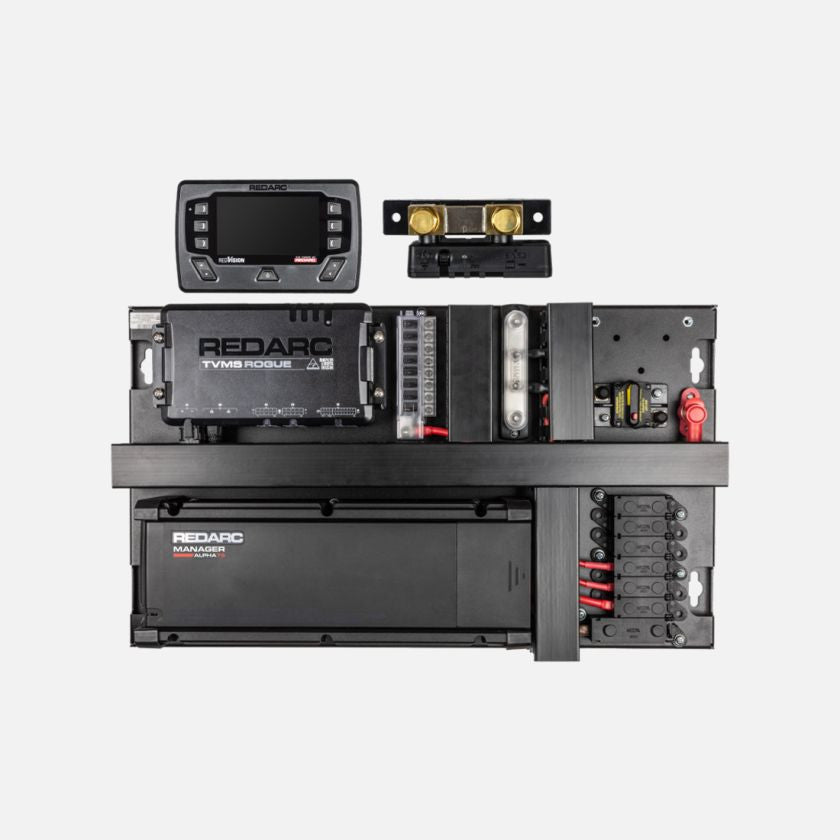

The REDARC ICMS-012-75-NA Integrated Power Management System is a complete plug-and-play power management solution for RVs, vans, and overland vehicles. Designed to simplify installation and reduce production complexity, it manages auxiliary and house battery charging from vehicle alternator, compatible solar panels, and shore power.

The system combines battery charging, load management, tank and temperature monitoring, and start battery recovery into a single integrated platform. It also supports control through the included display and compatible mobile app.

Key Features

• Charges auxiliary and house battery systems from vehicle alternator, compatible solar panels, and shore power

• Up to 100A battery charging

• Controls up to 20 switched loads with dimming and trigger switch capability

• Monitors multiple tanks and temperature zones

• Four tank inputs for system monitoring

• Start Battery Recovery helps prevent vehicle no-start situations

• Maintains the start battery using solar power during vehicle storage

• Includes display and mobile app support for system monitoring and control

• Integrated high-power and fused load connections for simplified installation

Specifications

• Product: REDARC Integrated Power Management System

• Model: ICMS-012-75-NA

• Maximum Charge Current: 100 A

• Charging Sources: Vehicle Alternator, Compatible Solar Panels, Shore Power

• Tank Inputs: 4

• Load Switching: 20 Outputs

• Monitoring: Multiple Tank Levels and Temperature Zones

• Start Battery Recovery: Yes

• Start Battery Maintenance: Solar Charging During Storage

• High-Power Connections: 8 Blade-Fused Outputs

• Lower Load Connections: 3 MIDI-Fused Outputs

• Control Interface: Included Display and Compatible Mobile App
