Tuff Stuff Telescoping Ladder (102 Inch, 330 Load Capacity)

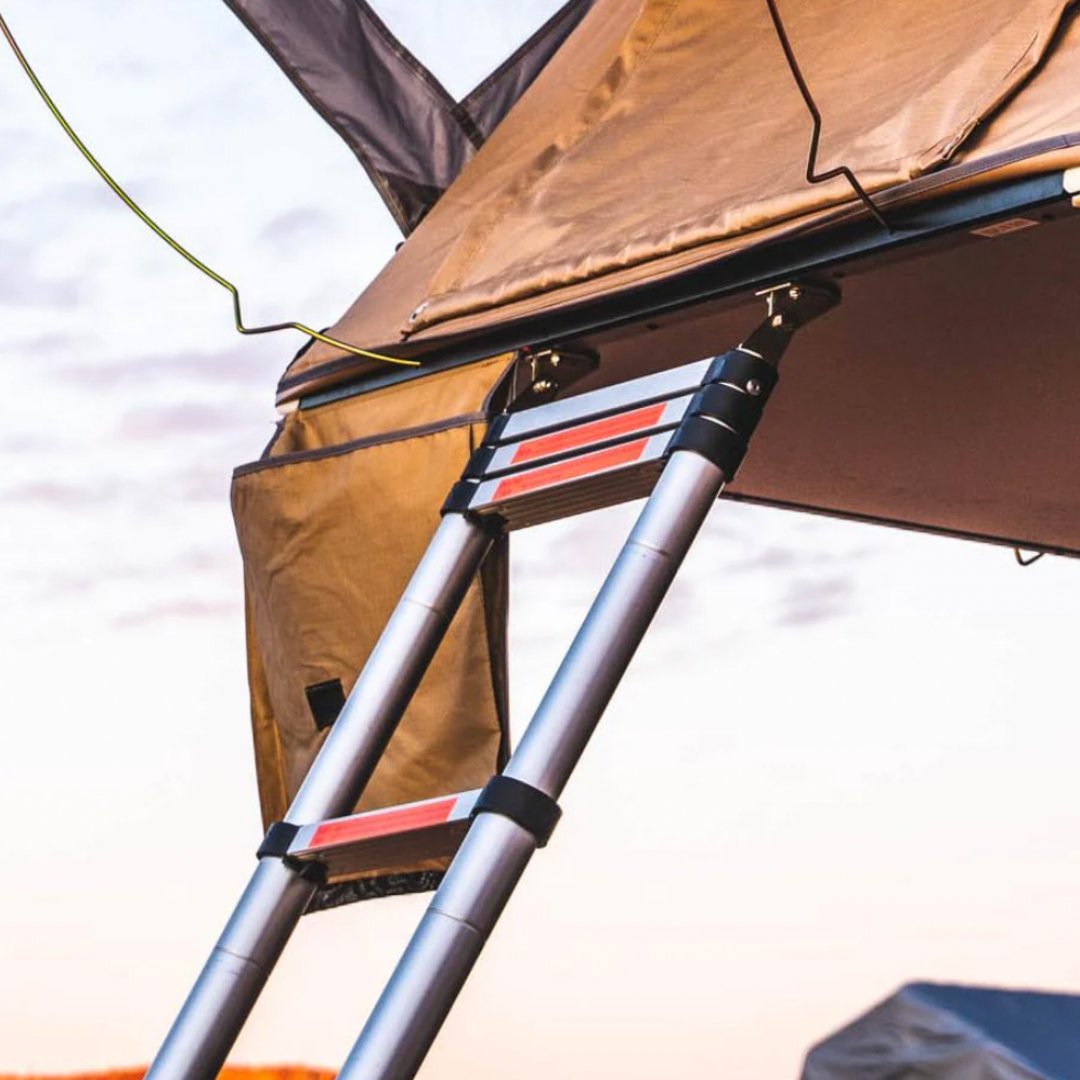

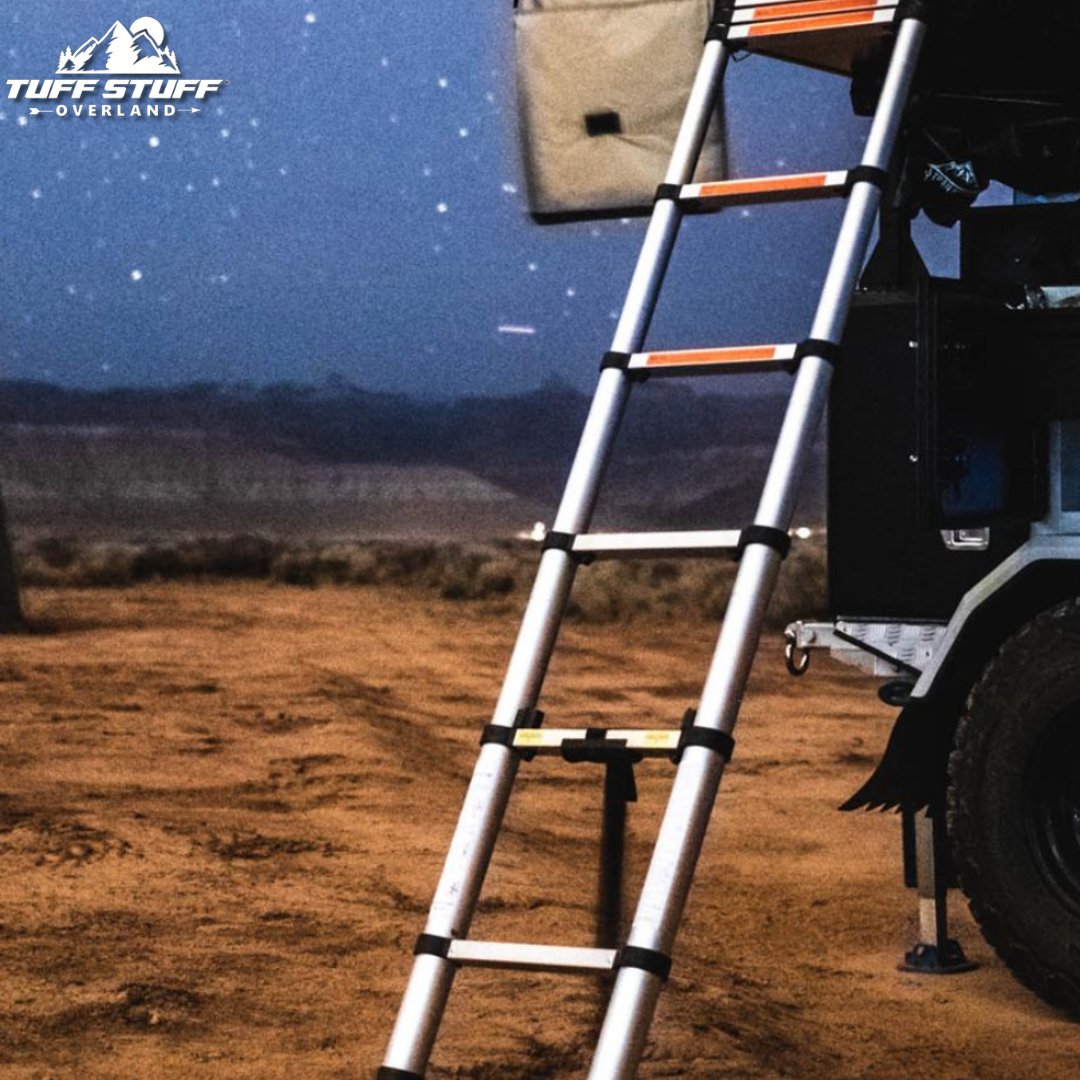

If you’re looking to swap out your roof top tent's standard square sliding ladder for a telescoping ladder, look no further! Tuff Stuff's telescoping ladder can extend up to a massive 8’ and can support up to 330Lbs.

Our telescoping ladder should be fully extended from the bottom until it locks into place, then collapsed at the top to reduce the height. Failure to follow these steps can result in injury to you or damage to your ladder or tent.

Compatible with the following:

• Alpha
• Alpha II
• Stealth
• Trailhead

Compatible, with minor modifications, to the following:

• Ranger
• Ranger 65
• Elite
• Delta
• Other branded tents

SPECIFICATIONS

• Collapsed (closed) Length: 31”
• Extended (open) Length: 102” or 8' 5"
• Width: 19.5”
• Ladder Rung Width: 13”
• Mounting Tabs (apart): 15.5”

INSTRUCTIONS

Replacing Existing Telescoping Ladder

• Bolton to the existing bolt pattern

Replacing the Original Extension Ladder (7' Length) with the Telescoping Ladder (8' 2" Length)

• Our ladder will install on any of our Tuff Stuff tents, however, because it is wider, it will require the drilling of 2 additional holes on either side of the original ladder holes if mounting to the following:
• Ranger
• Ranger 65
• Elite
• Delta

The same hardware can be used with either ladder.

Note

• If you are using an annex room and replacing your existing Extension Ladder (7' Length) with a Telescoping Ladder (8' 2" Length) you will need to purchase an Annex Extension for your tent.
• If you are using the Telescoping Ladder with the tent only you will not need an Annex Room Extension
